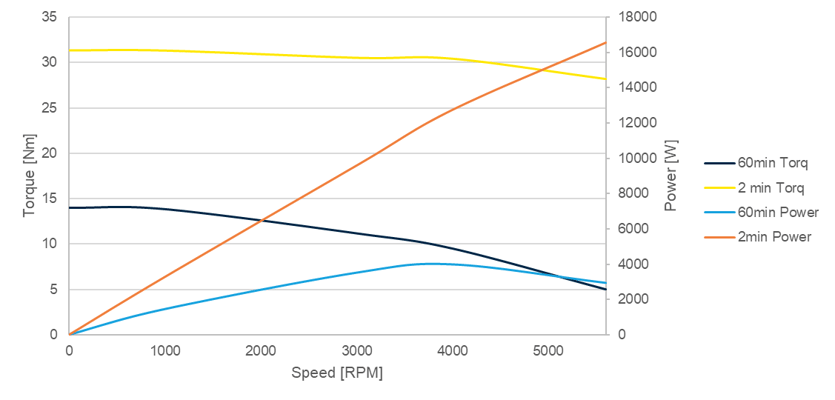

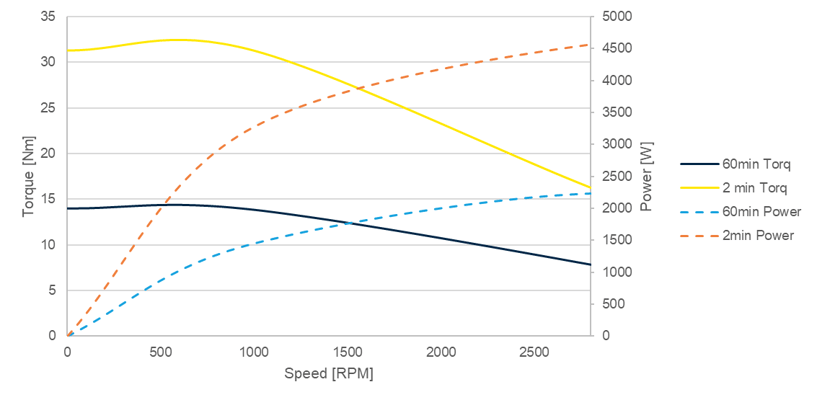

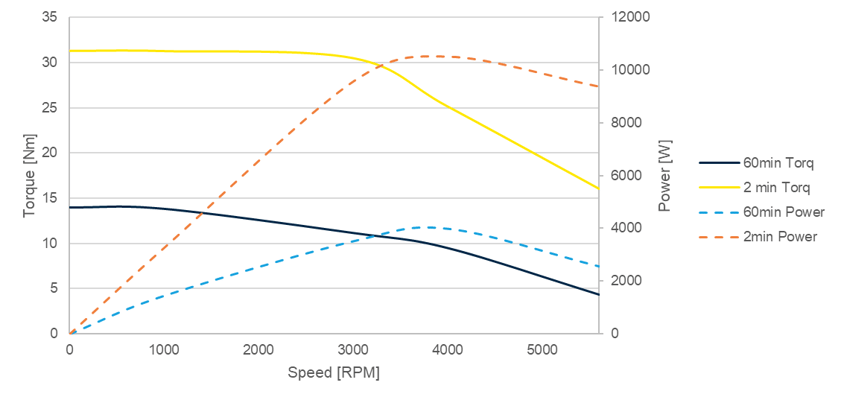

Torque Curves

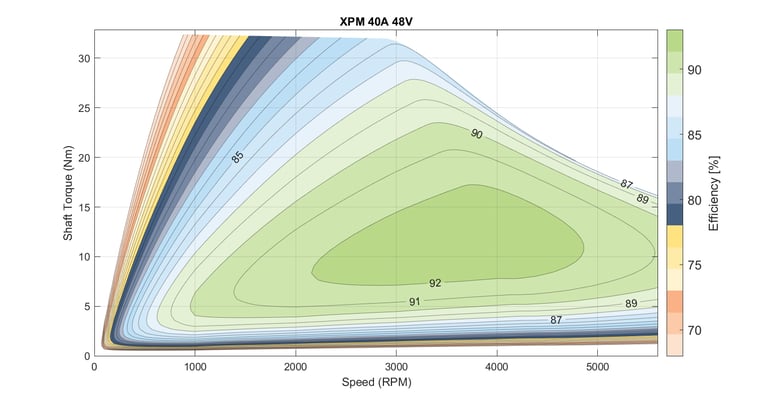

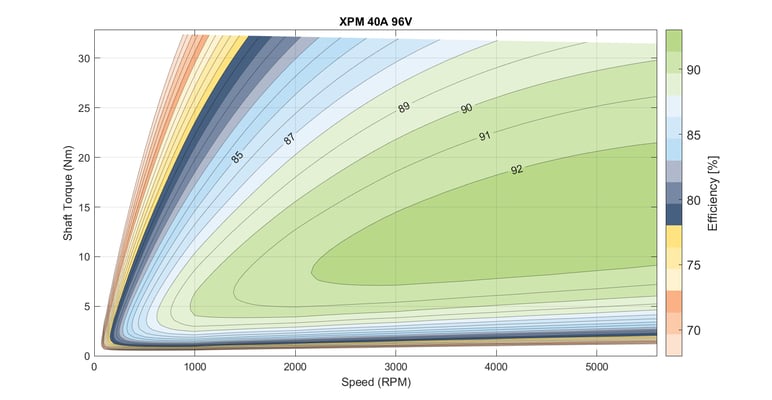

Efficiency Maps

General Motor Data

Industries

Compact and Powerful Permanent Magnet Motor

In the demanding world of construction and mobile equipment, reliable power is
essential. That’s why our RSM electric motor delivers industry-leading performance with
efficiency, durability, and versatility. Perfect for a wide range of applications, including:
Industrial equipment, Marine, Off Highway, and more.

Energy Efficient

Featuring a permanent magnet design, RSM motors generate more
power while consuming less Power, reducing operational costs.

Unmatched Reliability

Engineered for consistent performance and long-lasting
durability. With advanced technology and robust construction, it ensures minimal
maintenance and maximum uptime.

Rugged Design

minimal moving parts and a rifined build, the RSM motors ensure
long-lasting performance with reduced downtime. Suitable for demanding environments
with an IP54 rating

Quiet & Smooth Operation

Ideal for environments where noise reduction is
crucial, it operates smoothly and quietly, ensuring a comfortable and productive work environment

Compact & Lightweight

Easy to integrate into any application. Lightweight yet powerful, it offers flexibility and ease of installation without compromising on
performance

Model Number		XPM 40A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	74.0
	Tq S2-2m	2 min torque	Lb-Ft	54.6
	Tq S2-60m	60 min torque	Nm	27.2
	Tq S2-60m	60 min torque	Lb-Ft	20.0
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	12.3
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.17
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.18
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.13
Electrical	Rm	Resistance (L-L)	mΩ	7.6
	Lm	Inductance (L-L) avg	μH	143
	I(2m)	2 min current	Arms	380
	I(60m)	60 min current	Arms	150
	I(max)	Max safe intermittent current	Arms	400
Mechanical	Wt	Weight	Kg	?
	Nmax	Max Rated Speed	RPM	4200
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.36
	Poles	Number Of Motor Poles	#	8
