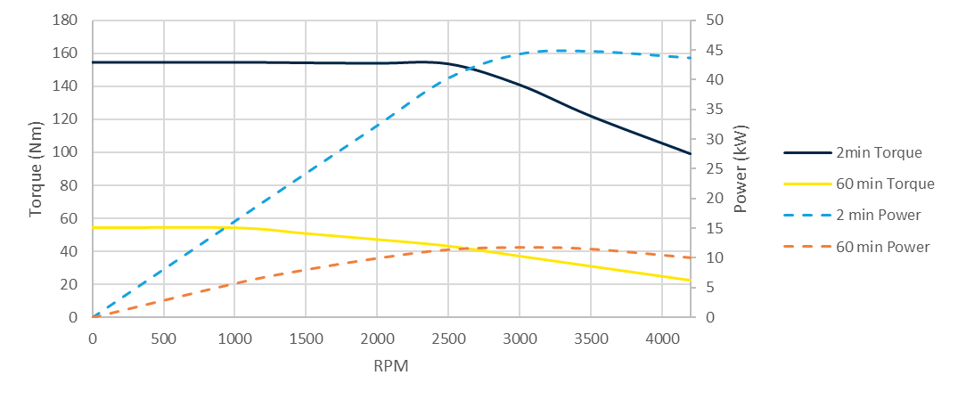

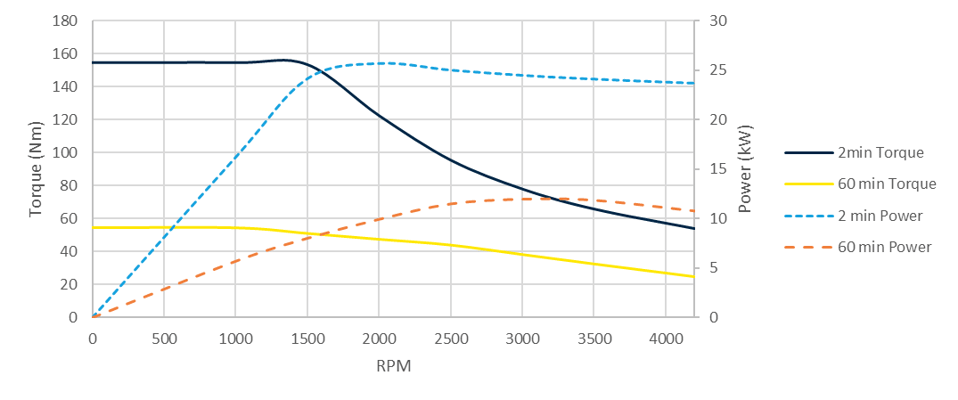

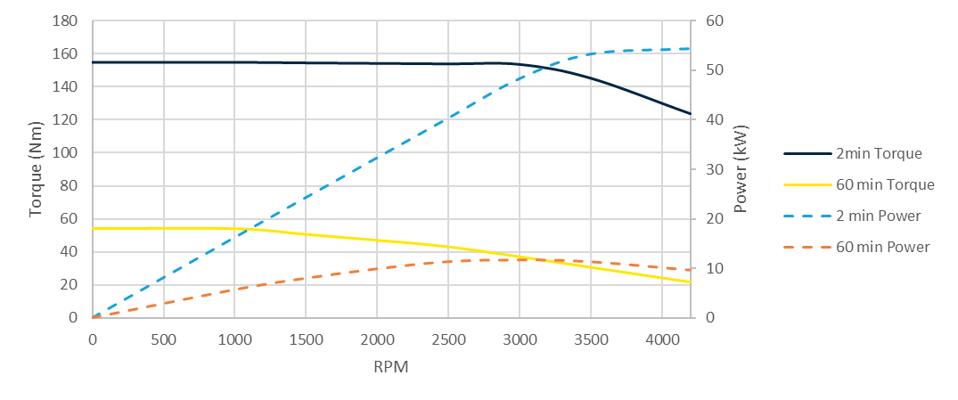

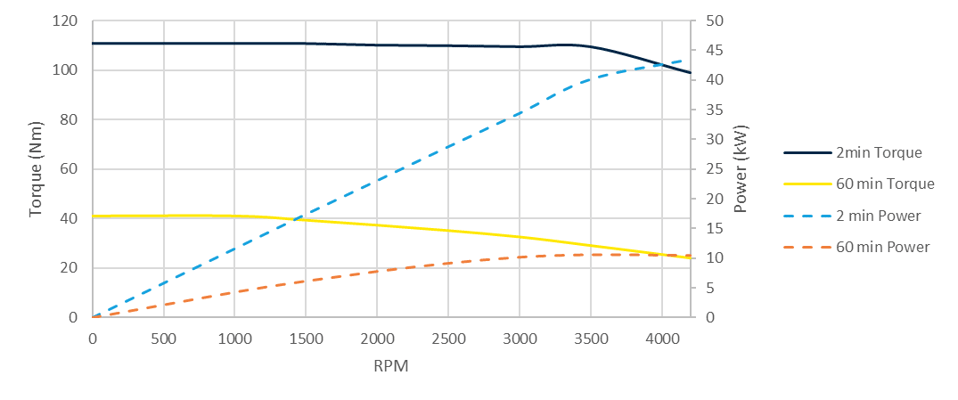

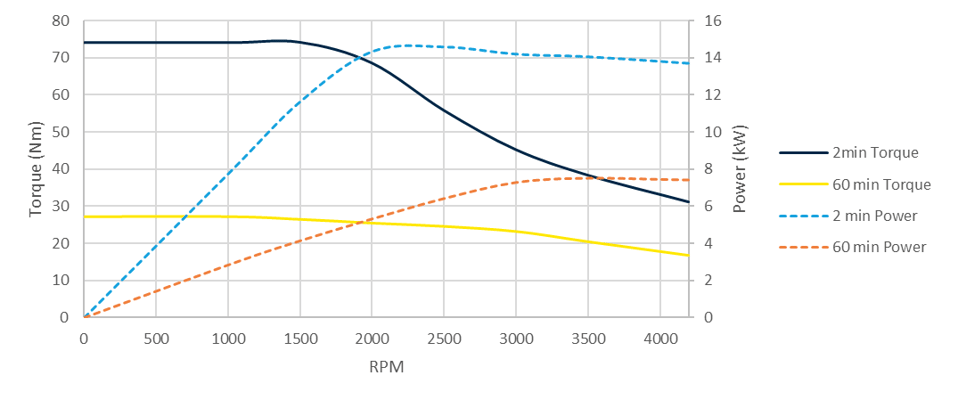

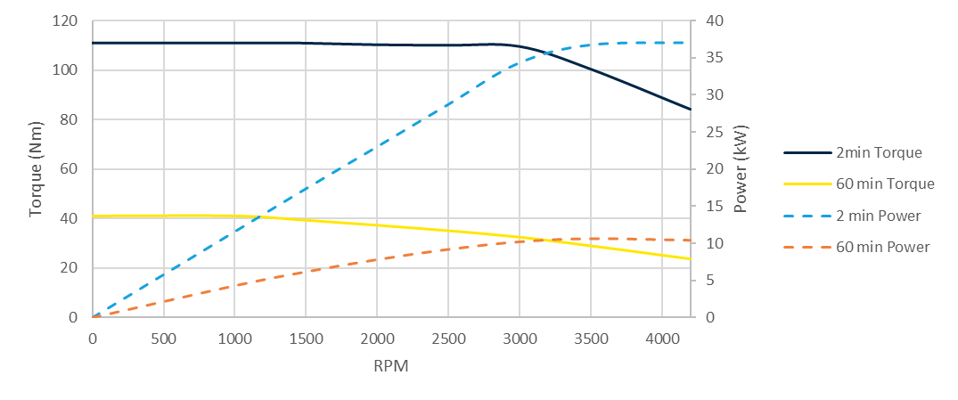

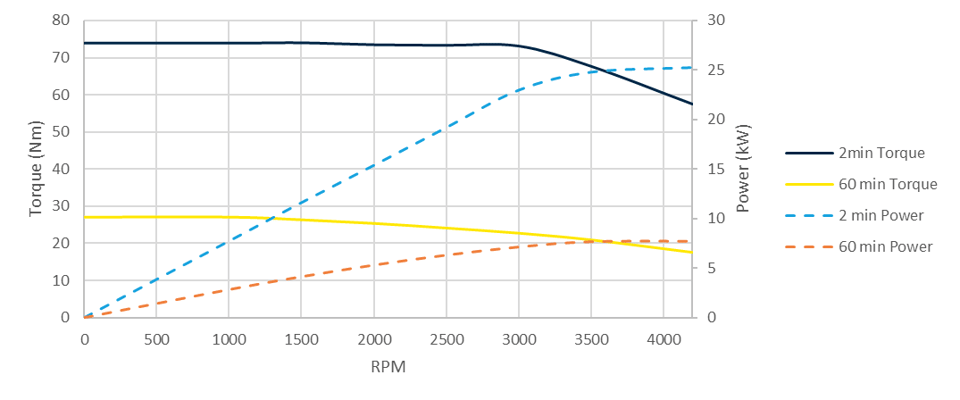

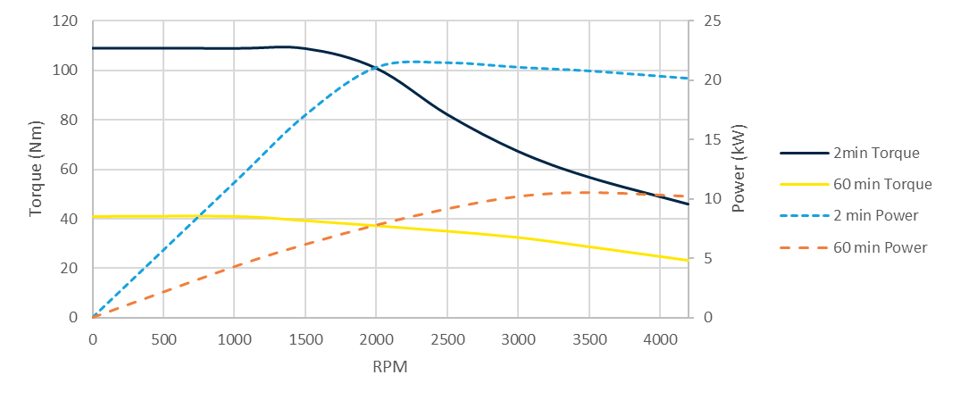

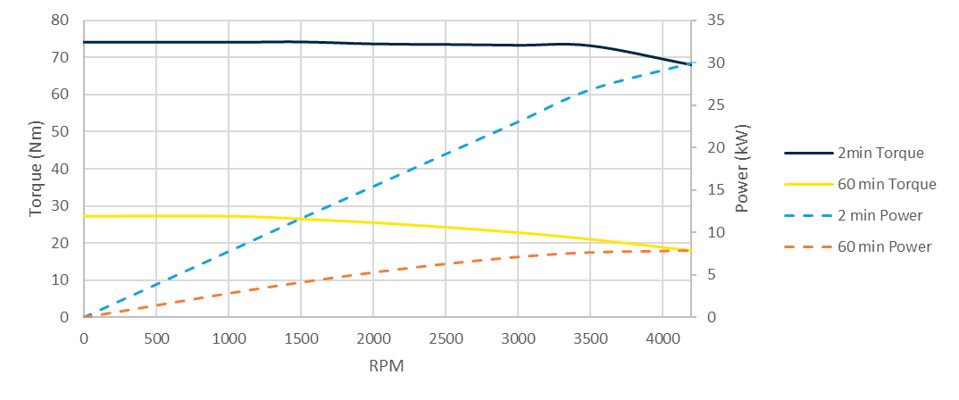

Torque Curves

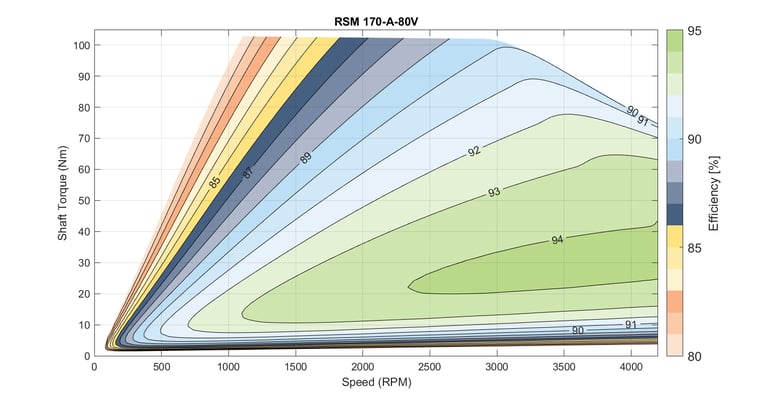

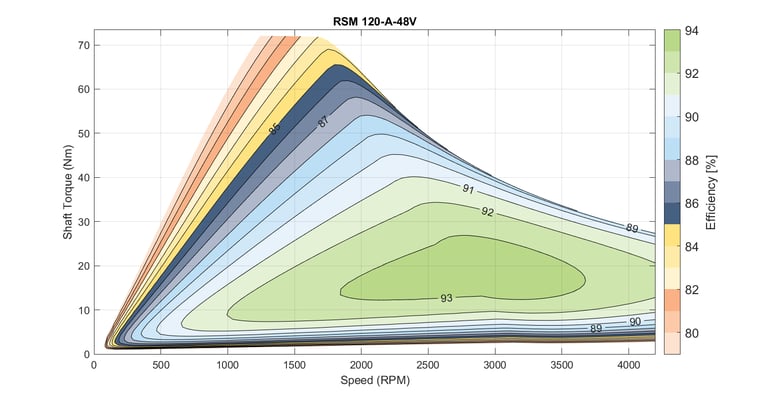

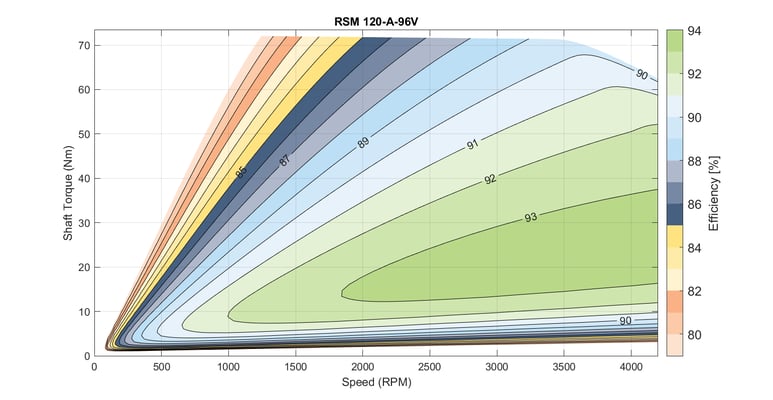

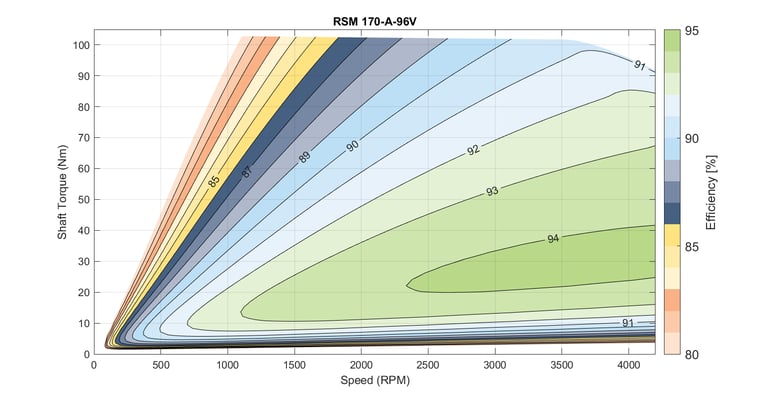

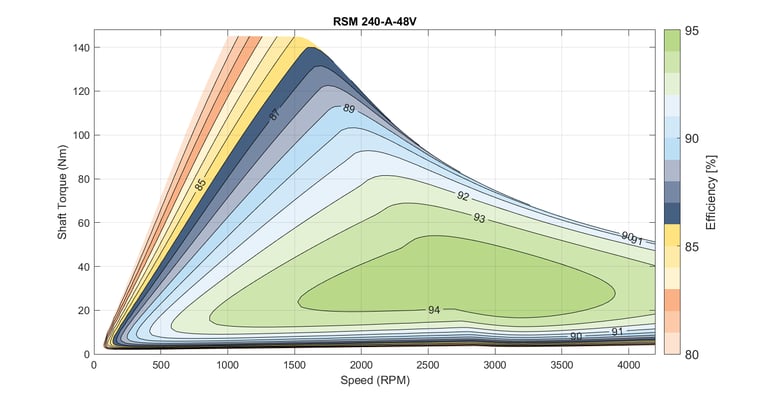

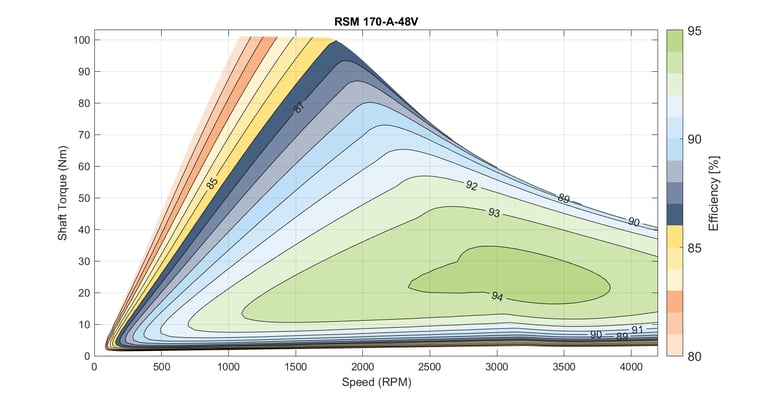

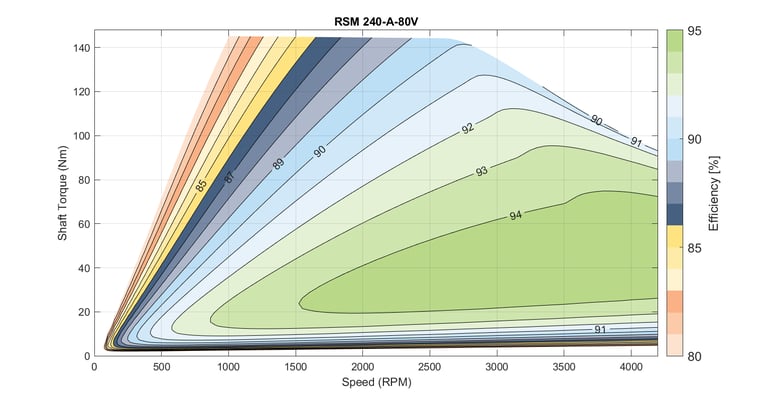

Efficiency Maps

General Motor Data

Industries

Compact and Powerful Permanent Magnet Motor

In the demanding world of construction and mobile equipment, reliable power is
essential. That’s why our RSM electric motor delivers industry-leading performance with
efficiency, durability, and versatility. Perfect for a wide range of applications, including:
Industrial equipment, Marine, Off Highway, and more.

Energy Efficient

Featuring a permanent magnet design, RSM motors generate more
power while consuming less Power, reducing operational costs.

Unmatched Reliability

Engineered for consistent performance and long-lasting
durability. With advanced technology and robust construction, it ensures minimal
maintenance and maximum uptime.

Rugged Design

minimal moving parts and a rifined build, the RSM motors ensure
long-lasting performance with reduced downtime. Suitable for demanding environments
with an IP54 rating

Quiet & Smooth Operation

Ideal for environments where noise reduction is
crucial, it operates smoothly and quietly, ensuring a comfortable and productive work environment

Compact & Lightweight

Easy to integrate into any application. Lightweight yet powerful, it offers flexibility and ease of installation without compromising on
performance

Model Number		RSM170-120-A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	74.0
	Tq S2-2m	2 min torque	Lb-Ft	54.6
	Tq S2-60m	60 min torque	Nm	27.2
	Tq S2-60m	60 min torque	Lb-Ft	20.0
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	12.3
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.17
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.18
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.13
Electrical	Rm	Resistance (L-L)	mΩ	7.6
	Lm	Inductance (L-L) avg	μH	143
	I(2m)	2 min current	Arms	380
	I(60m)	60 min current	Arms	150
	I(max)	Max safe intermittent current	Arms	400
Mechanical	Wt	Weight	Kg	?
	Nmax	Max Rated Speed	RPM	4200
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.36
	Poles	Number Of Motor Poles	#	8

Voltage	Recommended Inmotion Controller	2min Current	60min
48	ACS48M55	550	275
80	ACS96M40	400	180
96	ACS96M40	400	180

Model Number		RSM170-170-A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	111.1
	Tq S2-2m	2 min torque	Lb-Ft	81.9
	Tq S2-60m	60 min torque	Nm	41.0
	Tq S2-60m	60 min torque	Lb-Ft	30.2
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	12.5
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.17
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.18
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.13
Electrical	Rm	Resistance (L-L)	mΩ	4.5
	Lm	Inductance (L-L) avg	μH	98
	I(2m)	2 min current	Arms	560
	I(60m)	60 min current	Arms	230
	I(max)	Max safe intermittent current	Arms	560
Mechanical	Wt	Weight	Kg	?
	Nmax	Max Rated Speed	RPM	4200
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.302
	Poles	Number Of Motor Poles	#	8

Voltage	Recommended Inmotion Controller	2min Current	60min
48	ACS48M55	550	275
80	ACS96L60	600	300
96	ACS96L70	700	350

Model Number		RSM170-240-A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	155.2
	Tq S2-2m	2 min torque	Lb-Ft	114.5
	Tq S2-60m	60 min torque	Nm	54.2
	Tq S2-60m	60 min torque	Lb-Ft	40.0
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	13.6
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.18
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.21
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.15
Electrical	Rm	Resistance (L-L)	mΩ	3.8
	Lm	Inductance (L-L) avg	μH	87
	I(2m)	2 min current	Arms	700
	I(60m)	60 min current	Arms	265
	I(max)	Max safe intermittent current	Arms	700
Mechanical	Wt	Weight	Kg	?
	Nmax	Max Rated Speed	RPM	4200
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.24
	Poles	Number Of Motor Poles	#	8
