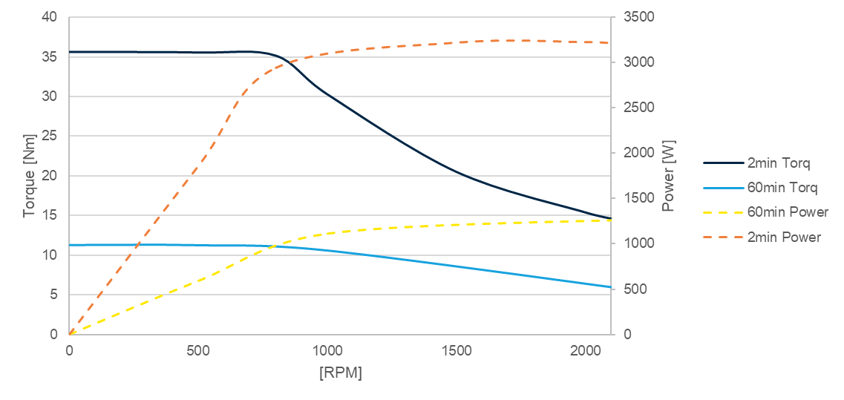

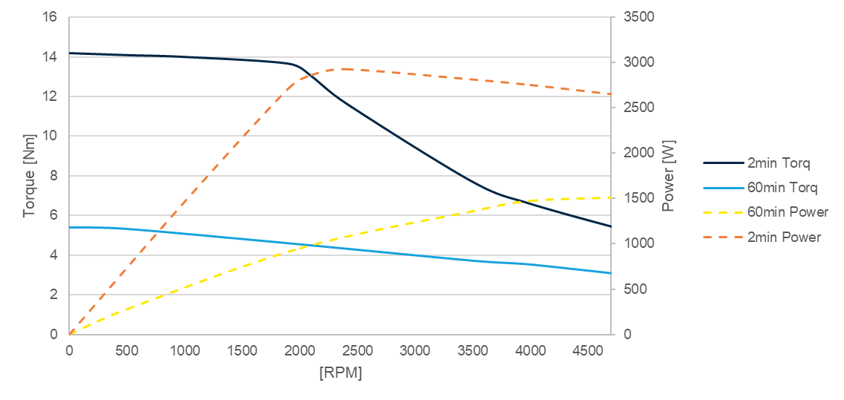

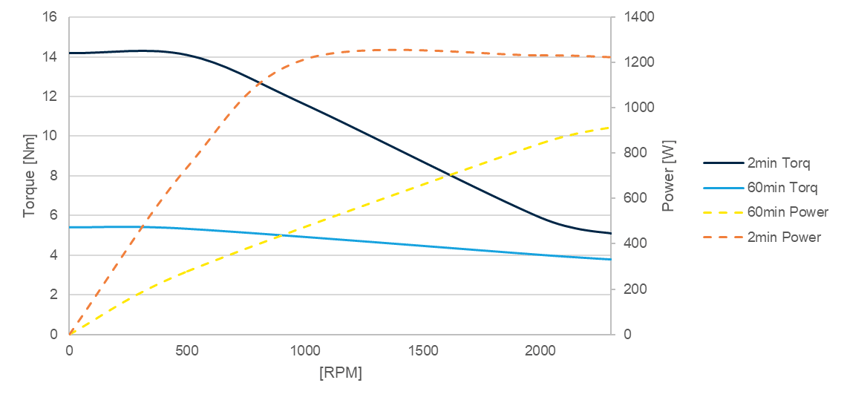

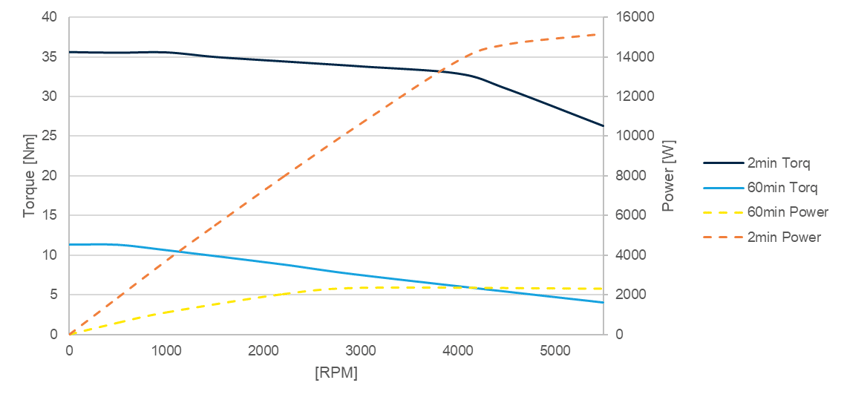

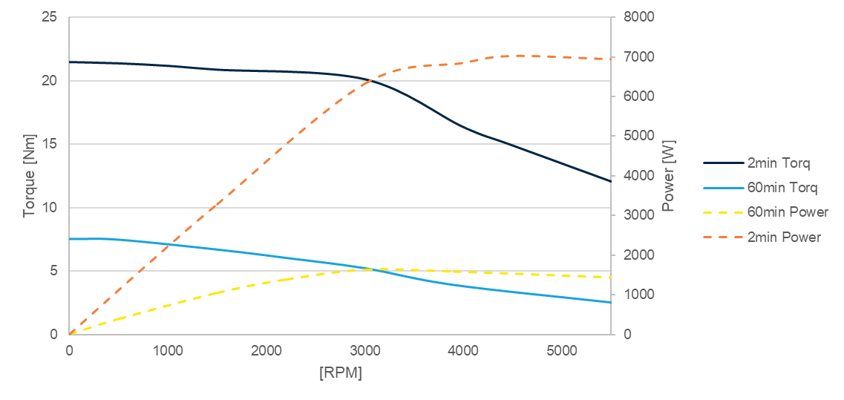

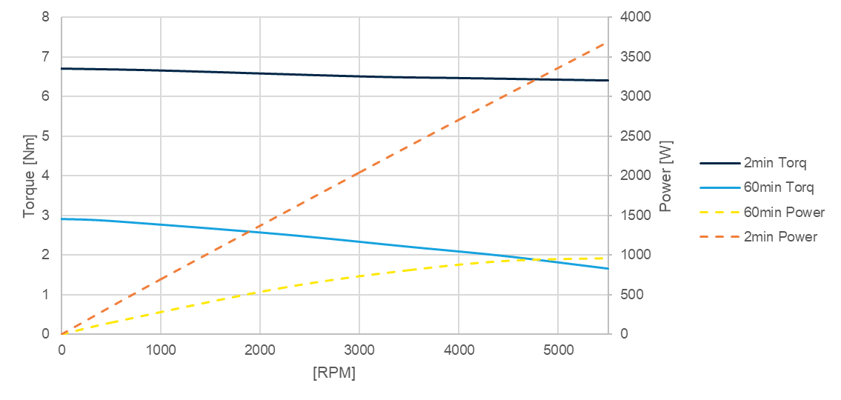

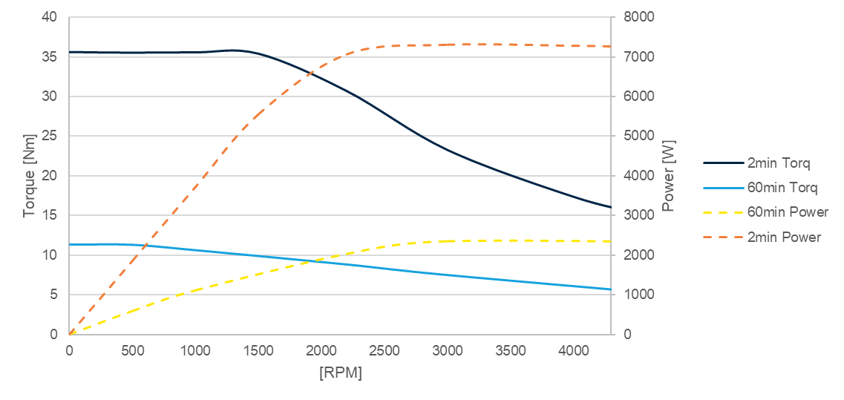

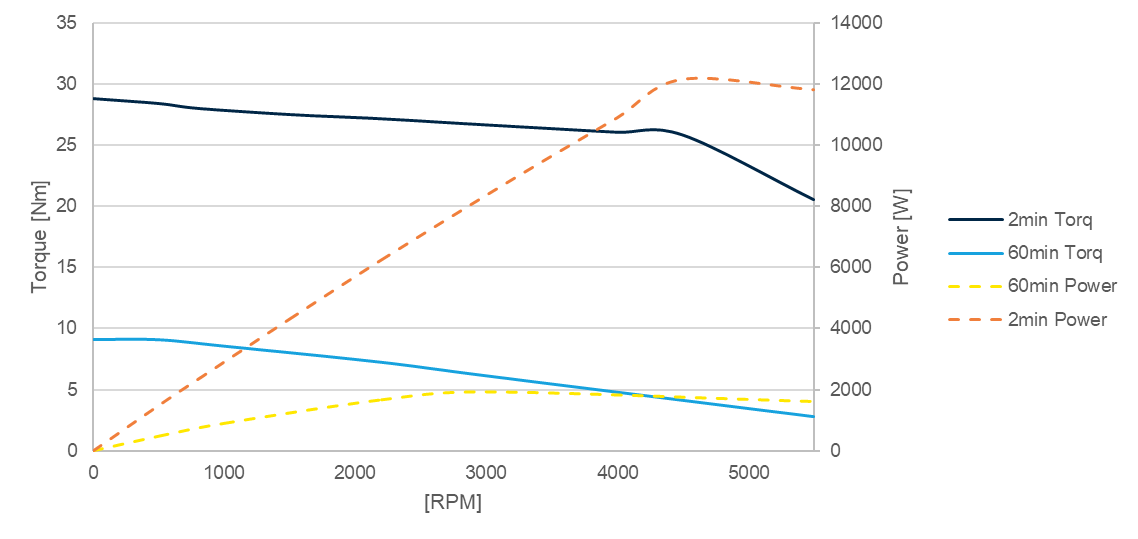

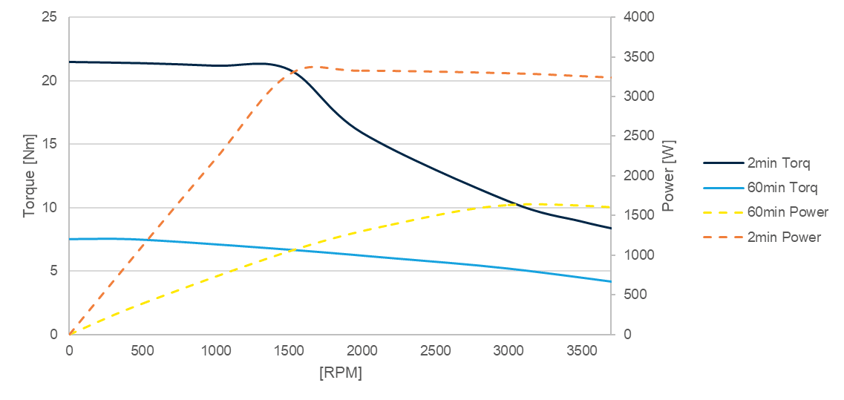

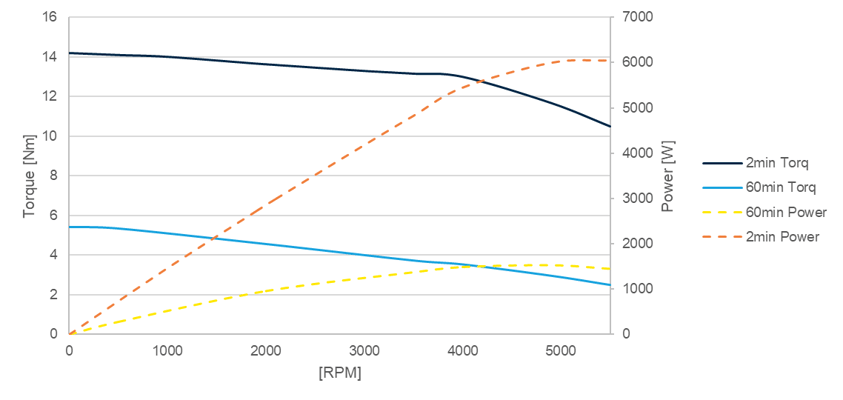

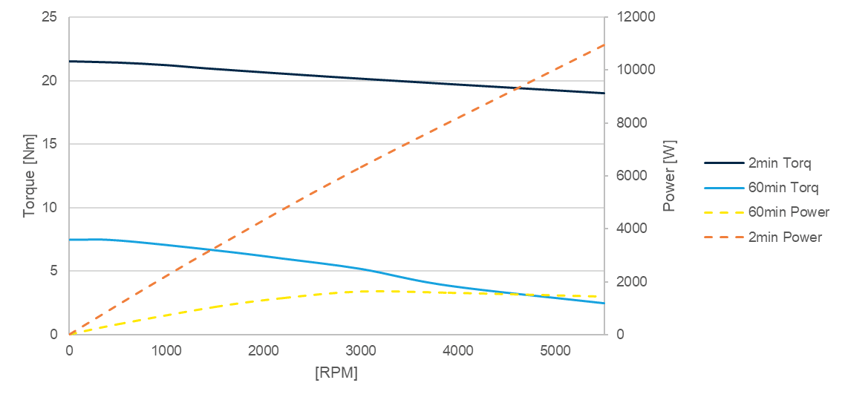

Torque Curves

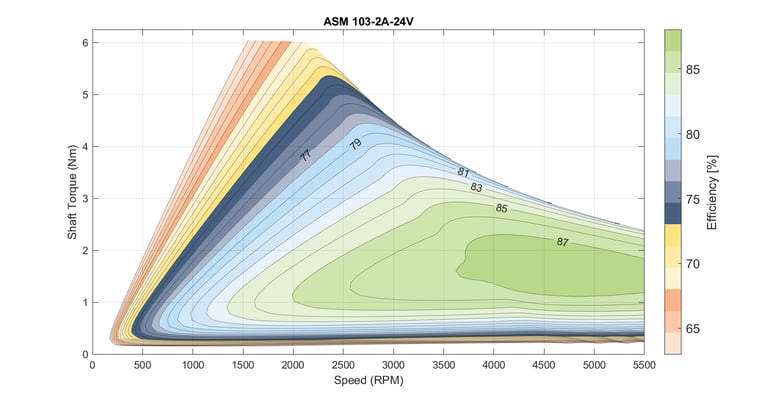

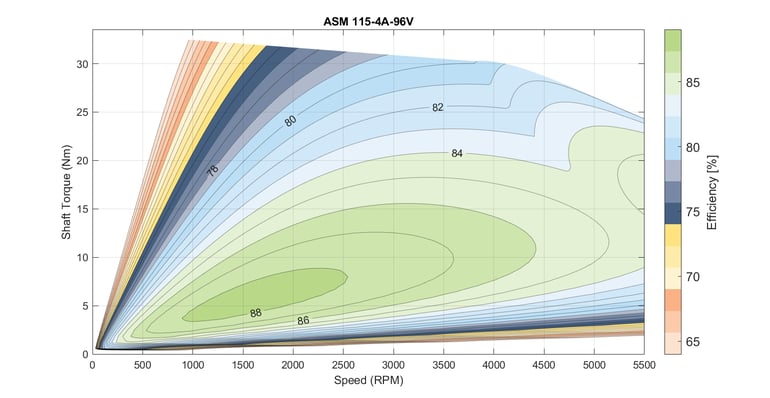

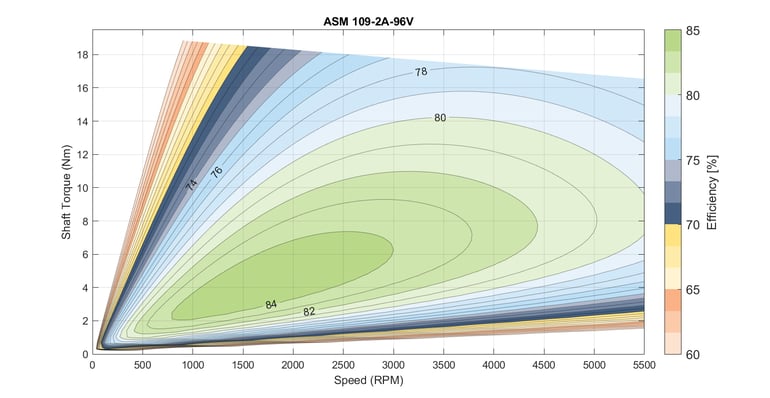

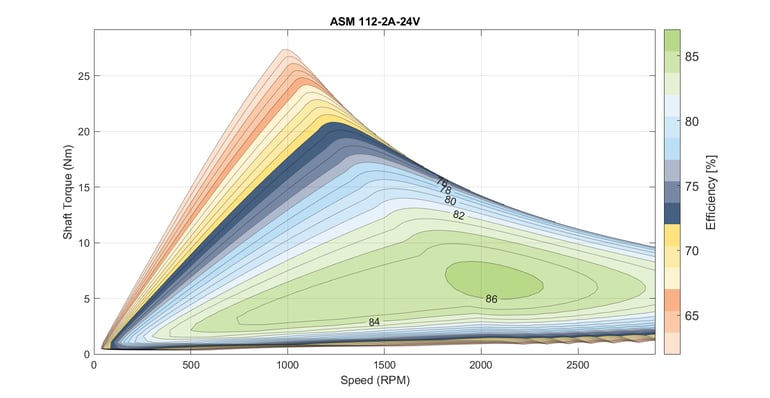

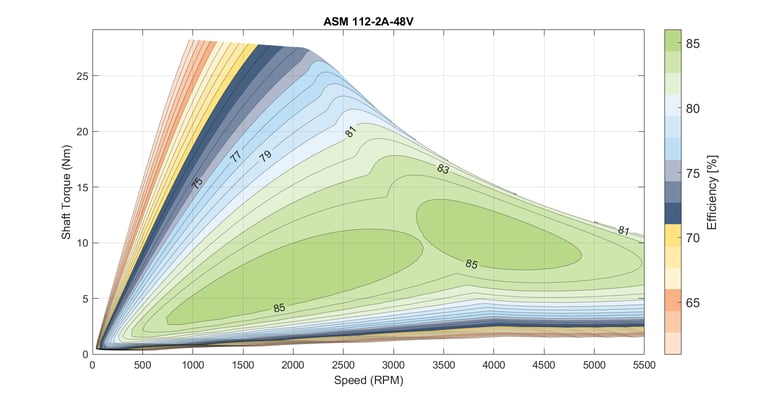

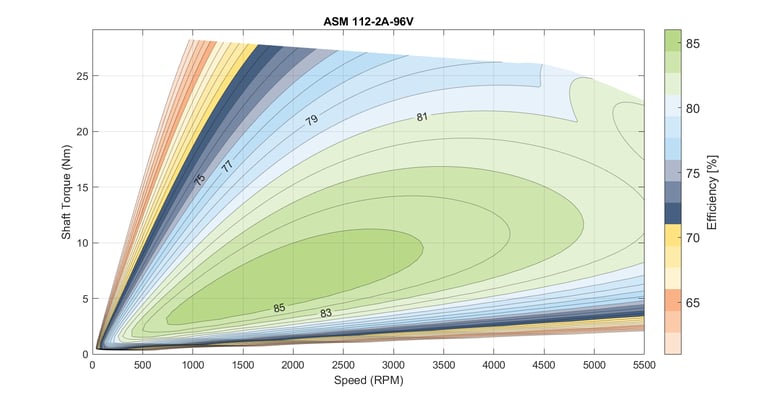

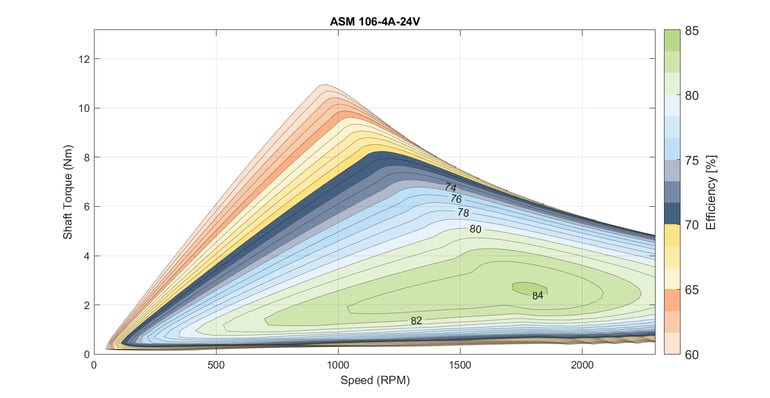

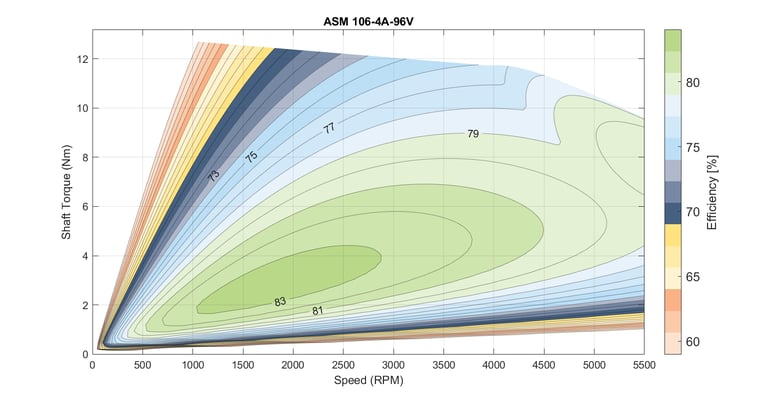

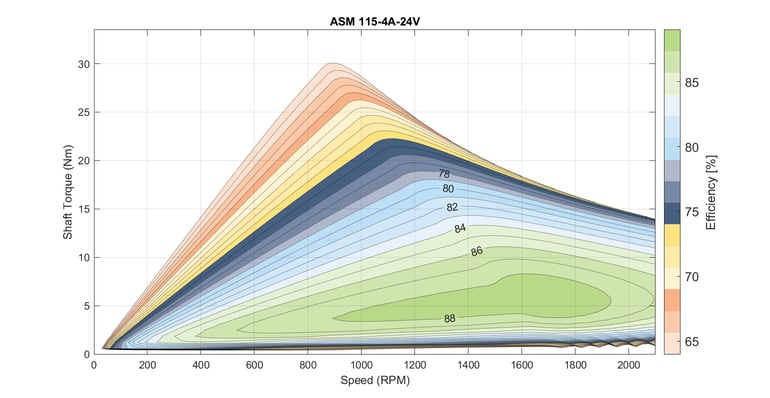

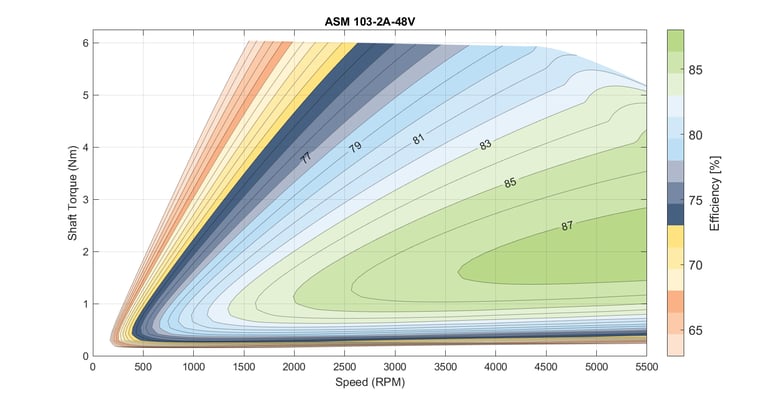

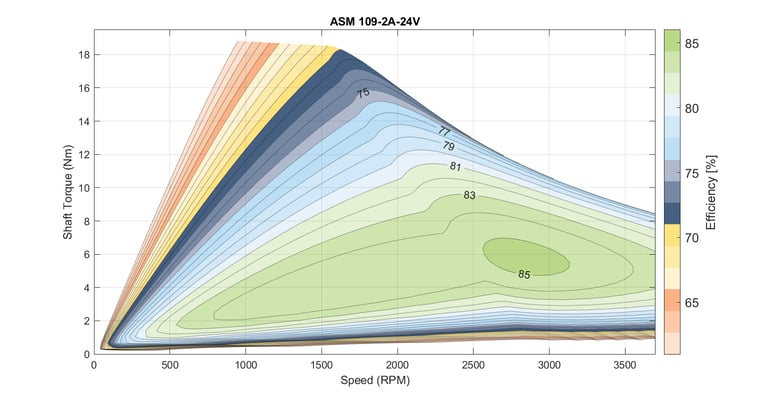

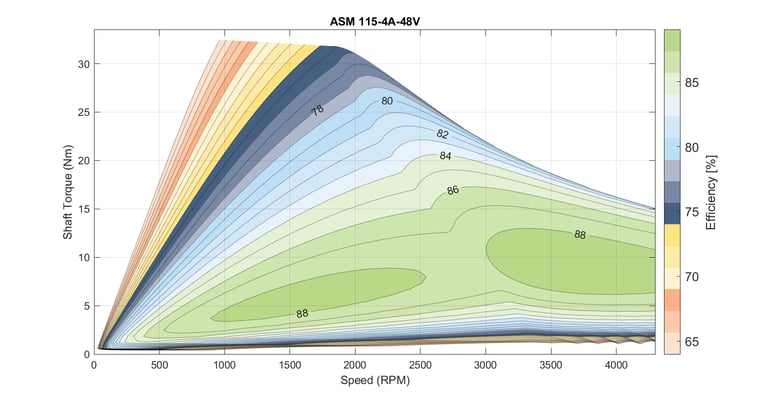

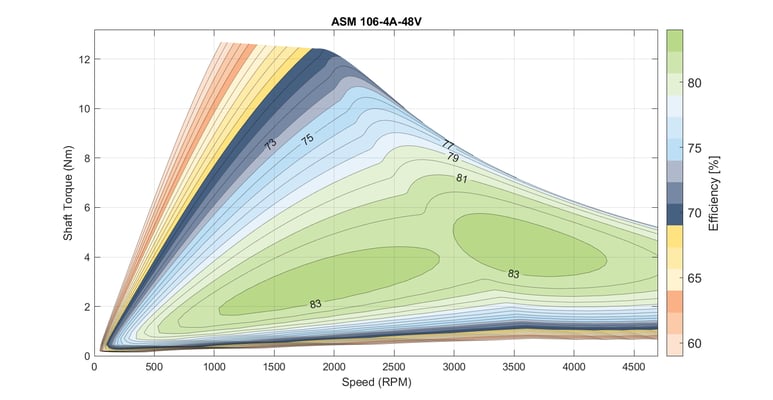

Efficiency Maps

General Motor Data

Industries

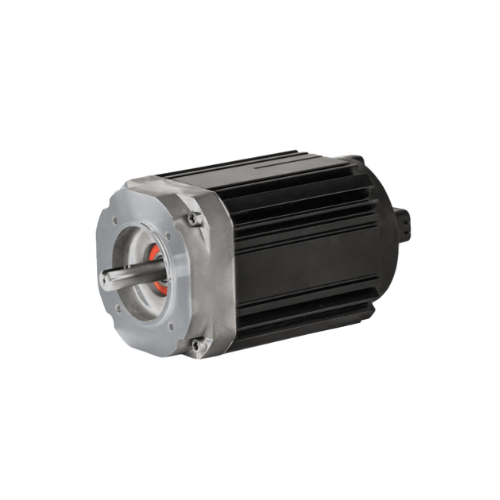

Rugged PMAC Motors

In the demanding world of construction and mobile equipment, reliable power is essential. That’s why our ASM electric motor delivers industry-leading performance with efficiency, durability, and versatility. Perfect for a wide range of applications, including: Industrial equipment, Marine, AGVs, and more.

Unmatched Reliability

Engineered for consistent performance and long-lasting
durability. With advanced technology and robust construction, it ensures minimal
maintenance and maximum uptime.

Energy Efficient

Featuring a permanent magnet design, RSM motors generate more
power while consuming less Power, reducing operational costs.

Low Maintenance

Minimal moving parts and a refined build, the RSM motors ensure
long-lasting performance with reduced downtime.

Quiet & Smooth Operation

Ideal for environments where noise reduction is
crucial, it operates smoothly and quietly, ensuring a comfortable and productive work environment

Compact & Lightweight

Easy to integrate into any application. Lightweight yet powerful, it offers flexibility and ease of installation without compromising on
performance

Model Number		ASM 103-2A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	6.6
	Tq S2-2m	2 min torque	Lb-Ft	4.87
	Tq S2-60m	60 min torque	Nm	2.85
	Tq S2-60m	60 min torque	Lb-Ft	2.1
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	4.3
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.058
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.061
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.045
Electrical	Rm	Resistance (L-L)	mΩ	28
	Lm	Inductance (L-L) avg	μH	124
	I(2m)	2 min current	Arms	100
	I(60m)	60 min current	Arms	45
	I(max)	Max safe intermittent current	Arms	100
Mechanical	Nmax	Max Rated Speed	RPM	5500
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.825
	Poles	Number Of Motor Poles	#	12

Voltage	Recommended Inmotion Controller	2min Current	60min
24	ACS24W24	240	120
48	ACS48W18	180	90
96	ACS96W11	115	48

Model Number		RSM 106-4A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	14
	Tq S2-2m	2 min torque	Lb-Ft	10.33
	Tq S2-60m	60 min torque	Nm	5.3
	Tq S2-60m	60 min torque	Lb-Ft	3.91
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	10.2
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.138
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.144
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.106
Electrical	Rm	Resistance (L-L)	mΩ	61.3
	Lm	Inductance (L-L) avg	μH	313
	I(2m)	2 min current	Arms	88
	I(60m)	60 min current	Arms	36
	I(max)	Max safe intermittent current	Arms	88
Mechanical	Nmax	Max Rated Speed	RPM	5500
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.689
	Poles	Number Of Motor Poles	#	12

Voltage	Recommended Inmotion Controller	2min Current	60min
24	ACS24W24	240	120
48	ACS48W18	180	90
96	ACS96W11	115	48

Model Number		ASM 109-2A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	21.6
	Tq S2-2m	2 min torque	Lb-Ft	15.9
	Tq S2-60m	60 min torque	Nm	7.4
	Tq S2-60m	60 min torque	Lb-Ft	5.5
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	6.5
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.087
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.00
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.00
Electrical	Rm	Resistance (L-L)	mΩ	15.1
	Lm	Inductance (L-L) avg	μH	9
	I(2m)	2 min current	Arms	200
	I(60m)	60 min current	Arms
	I(max)	Max safe intermittent current	Arms	88
Mechanical	Nmax	Max Rated Speed	RPM	5500
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt
	Poles	Number Of Motor Poles	#	12

Voltage	Recommended Inmotion Controller	2min Current	60min
24	ACS24W24	240	120
48	ACS48W18	180	90
96	ACS96M23	230	115

Model Number		ASM 112 - 2A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	28.7
	Tq S2-2m	2 min torque	Lb-Ft	21.17
	Tq S2-60m	60 min torque	Nm	9.1
	Tq S2-60m	60 min torque	Lb-Ft	6.71
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	8.2
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.111
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.116
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.086
Electrical	Rm	Resistance (L-L)	mΩ	18.6
	Lm	Inductance (L-L) avg	μH	95.0
	I(2m)	2 min current	Arms	220
	I(60m)	60 min current	Arms	78
	I(max)	Max safe intermittent current	Arms	220
Mechanical	Nmax	Max Rated Speed	RPM	5500
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.633
	Poles	Number Of Motor Poles	#	12

Voltage	Recommended Inmotion Controller	2min Current	60min
24	ACS24W24	240	120
48	ACS48W28	280	120
96	ACS96M23	230	115

Model Number		ASM 115-4A	Units	Value
Performance	Tq S2-2m	2 min torque	Nm	35.5
	Tq S2-2m	2 min torque	Lb-Ft	26.18
	Tq S2-60m	60 min torque	Nm	11.3
	Tq S2-60m	60 min torque	Lb-Ft	8.33
	Kb	Back EMF Constant (22°C)	Vrms/kRPM	11.1
	Kb	Back EMF Constant (22°C)	Vpk/rad/sec	0.150
	Kt (loaded)	Kt (hot, 60min load)	N-m/Arms	0.153
	Kt (loaded)	Kt (hot, 60min load)	Lb-Ft / Arms	0.113
Electrical	Rm	Resistance (L-L)	mΩ	23.2
	Lm	Inductance (L-L) avg	μH	140
	I(2m)	2 min current	Arms	200
	I(60m)	60 min current	Arms	73
	I(max)	Max safe intermittent current	Arms	200
Mechanical	Nmax	Max Rated Speed	RPM	5500
	Tmax	Max continuous temperature rating	°C	155
	Rth	Thermal Resistance	°C/Watt	0.633
	Poles	Number Of Motor Poles	#	12
