In electric drive systems for off-highway applications, torque is the mechanical foundation upon which functionality, reliability, and efficiency are built.
Whether the task involves lifting, hauling, or navigating uneven terrain, torque determines how effectively a machine can translate electrical energy into usable mechanical force. For engineers and system designers working in material handling, construction, or autonomous vehicle platforms, understanding torque is essential to optimizing motor performance and system integration.
Defining Torque in the Context of Electric Motors

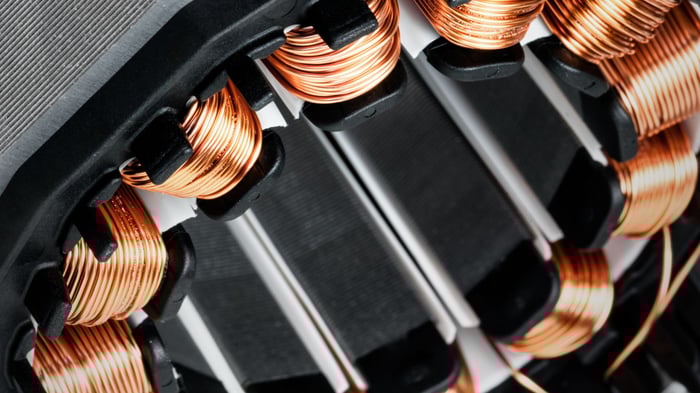

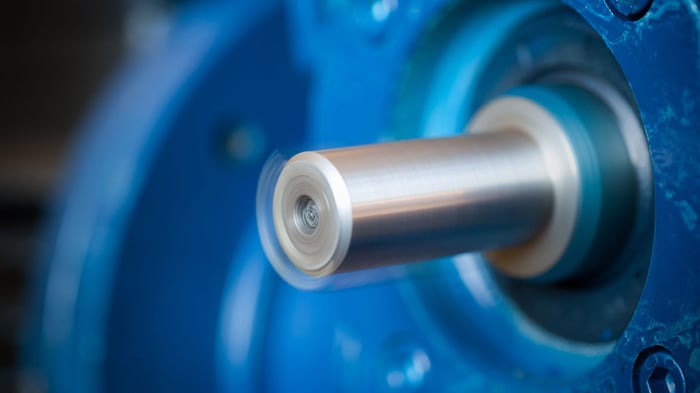

Torque, in its most fundamental form, is the rotational analog of linear force. It is defined as the product of force and the perpendicular distance from the axis of rotation. In electric motors, torque arises from the interaction between the magnetic field generated by the stator and the current flowing through the rotor (or vice versa, depending on motor topology). This electromagnetic interaction produces a rotational force on the motor shaft, which is then transmitted to the drivetrain or mechanical load.
The torque output of a motor is typically expressed in Newton-meters (Nm), and it varies dynamically with operating conditions such as current, speed, temperature, and magnetic saturation. In off-highway applications, where motors often operate under variable loads and environmental conditions, torque must be both predictable and robust.
Instantaneous Torque: A Key Advantage of Electric Machines
One of the most significant advantages of electric motors over internal combustion engines (ICEs) is their ability to produce peak torque from zero RPM. This characteristic is particularly valuable in applications requiring immediate response and high force at low speeds. ICEs, by contrast, rely on engine speed to build torque, often requiring complex transmissions or torque converters to deliver usable force at low RPMs.
Electric motors eliminate this delay. Electric motors can deliver maximum available torque from zero RPM, constrained only by inverter current and system thermal limits. This responsiveness enhances precision in material handling, improves safety in autonomous systems, and increases productivity in construction equipment where load conditions can change rapidly.
The Physics Behind Torque Generation
Torque in electric motors is governed by several interrelated physical parameters:
- Current: Torque is directly proportional to the current supplied to the motor windings. Higher current increases the magnetic field strength, which in turn increases the force exerted on the rotor. However, increasing current also raises thermal stress and power losses, necessitating careful thermal design and current management.
- Magnetic Flux: The strength and distribution of the magnetic field within the motor directly affect torque. This is influenced by the design of the stator and rotor, the choice of magnetic materials, and the geometry of the motor.
-

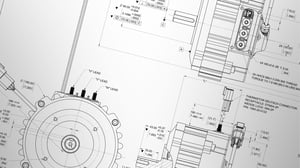

Motor Geometry: A longer stack increases the active magnetic area, allowing for greater torque without increasing current density. Rotor diameter affects the lever arm of the force, directly influencing torque output. Geometry – including stack length, rotor diameter, pole count, and air gap – directly impact torque output and efficiency.
-
Temperature: Temperature reduces torque in two ways: weakening magnet flux (particularly in NdFeB) and increasing copper winding resistance. As temperature increases, magnetic coercivity and remanence decrease, leading to reduced torque. Conversely, cooler operating conditions enhance magnetic performance, which is why motors often show higher torque in cold-start simulations compared to hot-running conditions.
- Saturation and Nonlinearities: At high current levels, magnetic saturation can occur, limiting the increase in torque despite further increases in current. This nonlinear behavior must be accounted for in motor control strategies and thermal modeling. In short, torque grows linearly with current only up to the saturation point.
Voltage, Speed, and Power: Understanding the Relationship
While torque is primarily proportional to current, available voltage determines how much current can be sustained at higher speeds as back-EMF rises. This makes voltage a critical factor in defining the motor’s usable torque-speed envelope. Higher voltage allows the motor to overcome back-EMF (electromotive force) at higher RPMs, enabling greater speed. Since mechanical power is the product of torque and angular velocity, increasing speed via voltage results in higher output power—assuming torque remains constant or within acceptable limits.
This relationship is particularly important in applications where both high torque and high speed are required, such as in hybrid drive systems or multi-mode electric vehicles. Designers must balance voltage, current, and motor geometry to achieve the desired performance envelope.
Case Study: Torque Performance of the XPM 80B at 80V
The XPM 80B motor, operating at 80V, provides a clear example of how torque behaves across a range of speeds. At low RPMs, the motor delivers high and stable torque, ideal for tasks requiring strong initial force. As speed increases, torque naturally declines due to back-EMF and thermal limitations, but overall power output continues to rise thanks to the increased angular velocity.
This torque-speed profile is typical of permanent magnet synchronous motors (PMSMs) and reflects the careful balance between electromagnetic design, thermal management, and control strategy. Engineers analyzing such curves must consider not only peak torque but also continuous torque ratings, thermal derating, and transient overload capabilities.
Thermal Considerations and Simulation Accuracy

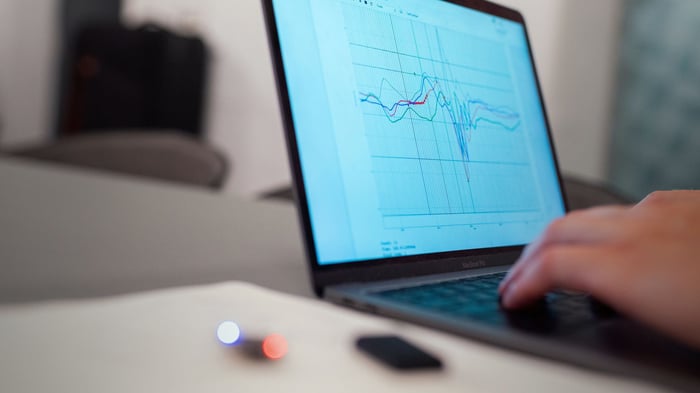

Motor simulations often assume steady-state or elevated operating temperatures to reflect worst-case scenarios. However, real-world conditions—such as cold starts or intermittent duty cycles—can result in higher torque than predicted by hot simulations. This discrepancy highlights the importance of accurate thermal modeling and the need to validate simulations against empirical data.
Inmotion’s approach includes both hot and cold simulations to provide a comprehensive view of motor performance. This allows system integrators to make informed decisions about cooling strategies, duty cycles, and overload protection.
Control Strategies and System-Level Integration
Beyond the physics of torque generation, the way torque is managed and delivered through control algorithms plays a critical role in system performance. Advanced motor controllers use field-oriented control (FOC) and real-time feedback loops to regulate torque precisely, even under fluctuating load conditions. In off-highway applications, where terrain, payload, and task requirements vary constantly, torque control must be adaptive and robust. Integration with vehicle systems—such as hydraulic actuators, traction control, and autonomous navigation—requires seamless communication between the motor controller and the central ECU.
At Inmotion, our controllers are designed to support high-resolution torque commands and dynamic response profiles, enabling OEMs to fine-tune performance for specific use cases like slope climbing, precision lifting, or regenerative braking. This level of control ensures that torque is always available and intelligently applied to meet the demands of real-world operation.
Conclusion: Torque as a Design Driver toru
Torque is not just a specification—it’s a design driver that influences motor selection, control architecture, thermal strategy, and mechanical integration. In off-highway electric drive systems, where reliability and responsiveness are paramount, torque defines the machine’s ability to perform under load, adapt to changing conditions, and deliver consistent results.
That's why we focus on engineering motors and controllers that deliver dependable torque in demanding environments. Our solutions are built to handle the complexities of real-world applications, from the physics of magnetic saturation to the nuances of thermal derating. Because in the end, torque is what moves everything, and understanding it is the key to building better machines.
Author: Francesco Patroncini
